| 规格： | Specification: |
| 电压/Voltage | 1.5V，1.35V |
| 温度/Temperature | -40℃/0℃ ~ 95℃ |
| 容量/Density | 1Gb / 2Gb / 4Gb |
| 封装/Package | FBGA 96 |
| 速度/Speed | 800MHz，933MHz，1066MHz |
| 线宽/Width | x8/ x16 |

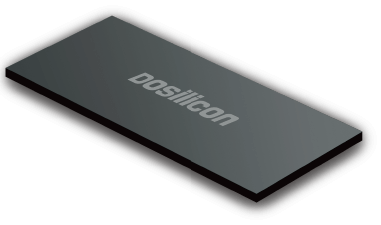

东芯的DDR3（L）产品具备高传输速率以及低工作电压。可提供1.5V/1.35V两种电压模式，具有标准SSTL接口、8n-bit prefetch DDR架构和8个内部bank的DDR3 SDRAM，是主流的内存产品。在网络通信，消费电子，智能终端，物联网等几乎所有电子产品领域都有广泛应用。
Dosilicon's DDR3 (L) has high transmission rate and low working voltage. DDR3 SDRAM comes in two voltage modes (1.5V / 1.35V), standard SSTL interfaces, 8n-bit prefetch DDR structure and 8 internal banks. It is a mainstream memory product and widely used in all fields of electronic products, such as network communication, consumer electronics, intelligent terminal, IoT, etc.
| Type | Part Number | Density | Voltage | Speed(MHz/CLK) | Temp. Range | PKG Type | Datasheet |
|---|---|---|---|---|---|---|---|
|
DDR3 |
FM38D16SAB-8KFD |
1Gb |
1.5V |
800MHz |
0℃~95℃ |
FBGA 96(7.5x13x1.2mm) |
|
|
DS38E16SBB-9MFB |
2Gb |
1.5V |
933MHz |
-40℃~95℃ |
FBGA 96(7.5x13x1.2mm) |
|
|
|
FM38E16SAB-ANGD |
1.35V/1.5V |
1066MHz |
0℃~95℃ |
FBGA 96(7.5x13.5x1.2mm) |
|
||
|
FM38F16SBB-ANGD |
4Gb |
1.35V/1.5V |
1066MHz |
0℃~95℃ |
FBGA 96(7.5x13.5x1.2mm) |
|
|
|
DS38F16SCB-ANGB |
4Gb |
1.35V/1.5V |
1066MHz |
-40℃~95℃ |
FBGA 96(7.5x13x1.2mm) |
Contact us |
|
|
DDR4 |
DS44G16PAB-CSED | 4Gb | 1.2V | 1333MHz | 0℃~95℃ | FBGA 96(7.5x13x1.2mm) | Contact us |
|
DS48G16PAD-CSED |
8Gb |
1333MHz | FBGA96(9x14x1.2mm) | Contact us | |||
|
PSRAM |
DSG2586AA-L500E |
256Mb |
1.8V |
200MHz |
-25℃~85℃ |
WLCSP 24Ball |
Contact us |
|
DSG2586AA-F500E |
FBGA 24Ball |
||||||
|
DSG2586AA-W500E |
KGD |
